Node Description and Purpose:
The Geog heightfieldA heightmap or heightfield is an array of height values, usually in a grid which describe the height at specific points in a defined area. Heightfields are used to represent real-world and virtual terrain in a specific, easily converted format. Most heightfields can be represented as simple image data in grayscale, with black being minimum height and white being maximum height. load nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. can load and georeference digital elevation map (DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars.) files. It supports many formats and projections. Geog heightfieldA heightmap or heightfield is an array of height values, usually in a grid which describe the height at specific points in a defined area. Heightfields are used to represent real-world and virtual terrain in a specific, easily converted format. Most heightfields can be represented as simple image data in grayscale, with black being minimum height and white being maximum height. load nodes can be created using the "Heightfield (load DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars.)" item in the Add Terrain button menu at the top of the Terrain nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. list.

You can see a list of the supported DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. formats supported by the nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. here. TG3 supports all of the formats which have "Yes" in the "Compiled by default" column of the table on that page. Most commonly used DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. formats are supported. Please note that not all of the supported formats have been tested, there are a lot of them and some are quite obscure.

You may notice that Terragen's TER terrain file format (.ter) is listed in the supported formats. However we recommend that you use a Heightfield Load nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. to load TG terrains, because that uses TG's native file loading.

DEMs often come as a collection of files. If you're not familiar with the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. format you may need to experiment to see which file to open. A reasonable guess often seems to be to choose the largest file.

Georeferencing settings are only available in the Professional edition. However the correct size for the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. will still be calculated based on georeferencing if needed. Without the georeferencing settings the position of the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. will be controlled by the Heightfield Shader the Geog heightfieldA heightmap or heightfield is an array of height values, usually in a grid which describe the height at specific points in a defined area. Heightfields are used to represent real-world and virtual terrain in a specific, easily converted format. Most heightfields can be represented as simple image data in grayscale, with black being minimum height and white being maximum height. load nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. is attached to.

When you use a georeferenced DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. and the Georeference parameterA parameter is an individual setting in a node parameter view which controls some aspect of the node. is checked it will be placed at the correct position on the planet. However accuracy falls away as you move away from the origin of the planet, which corresponds to 0° latitude, 0° longitude or the Prime Meridian at the Equator. To ensure the best accuracy it's suggested that you move the planet origin to the area you're interested in. It's easy to do this. Let's say you've loaded a DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. and it's georeferenced. We'll move the planet origin so that it's at the southwest corner of the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars.. Follow these steps:

  1. Click the copy/paste button (clipboard icon) at right of the SW corner lat long parameterA parameter is an individual setting in a node parameter view which controls some aspect of the node..
  2. Choose "Copy coordinates" from the menu which pops up. This will copy the lat/long values from both text fields at the same time.

  3. Open the parameterA parameter is an individual setting in a node parameter view which controls some aspect of the node. view for the Planet 01 nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. (the default planet object). You can find this in the Objects nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. list or double click on the nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. in the network view.

  4. Paste the values into the planet's Lat long at apex parameterA parameter is an individual setting in a node parameter view which controls some aspect of the node.. You should use the copy/paste button for this again. Click the button and choose "Paste coordinates".

Those steps move the planet origin to the area you're interested and should ensure the best results.

The nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. allows you to replace NODATA values with a different value. NODATA values indicate areas in the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. without valid data, which can often give the appearance of holes and similar in the terrain. Library previews for DEMs show NODATA areas drawn in red.

The nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. uses GDAL and PROJ.4 to load and georeference DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. files.

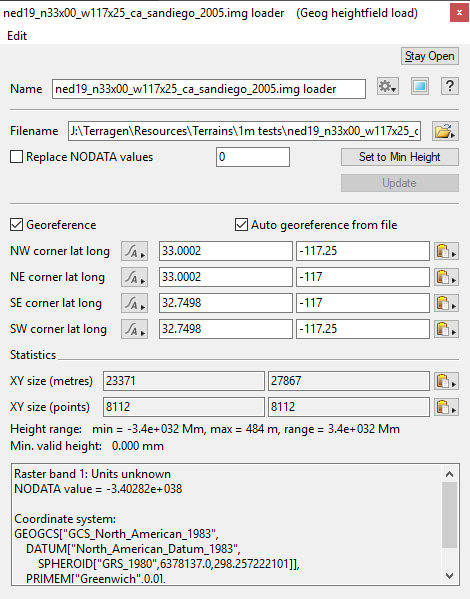

Node Type: Heightfield Operator


Settings:

  • Filename: This parameterA parameter is an individual setting in a node parameter view which controls some aspect of the node. lets you specify the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. file to be loaded. Click the File button on the right to open a file chooser dialog.
  • Replace NODATA values: If this is checked any NODATA values in the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. will be replaced with the value specified in the replacement value field to the right.
  • Update button: If you change the NODATA replacement value in the field to the left you will need to click this button to update the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. with the new replacement values. The button is only available if Replace NODATA values is checked.


The following georeferencing settings are only available in the Professional edition:

  • Georeference: If this is checked the heightfieldA heightmap or heightfield is an array of height values, usually in a grid which describe the height at specific points in a defined area. Heightfields are used to represent real-world and virtual terrain in a specific, easily converted format. Most heightfields can be represented as simple image data in grayscale, with black being minimum height and white being maximum height. will be georeferenced according to the settings in the fields below. If you uncheck this the position of the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. will be controlled by the Heightfield Shader this nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. is attached to. The DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. will still be the correct size (according to values derived from the file).
  • Auto georeference from file: If this is checked the nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. tries to load georeferencing information for the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars.. This is on by default so when you a create a new nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. and choose a file the georeferencing information will be loaded automatically. If the nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. finds georeferencing information when it loads the file it also turns on the Georeference parameterA parameter is an individual setting in a node parameter view which controls some aspect of the node.. Please note that this also means that the georeferencing information will be read when the nodeA single object or device in the node network which generates or modifies data and may accept input data or create output data or both, depending on its function. Nodes usually have their own settings which control the data they create or how they modify data passing through them. Nodes are connected together in a network to perform work in a network-based user interface. In Terragen 2 nodes are connected together to describe a scene. loads as part of a project being opened. If you turn off the Georeference parameterA parameter is an individual setting in a node parameter view which controls some aspect of the node. you should also turn off Auto georeference from file or Georeference will be turned back on again when the project loads.

    If you make changes to the georeferencing values this parameterA parameter is an individual setting in a node parameter view which controls some aspect of the node. is turned off.

  • NW corner lat long: This sets the latitude and longitude of the northwest corner of the heightfieldA heightmap or heightfield is an array of height values, usually in a grid which describe the height at specific points in a defined area. Heightfields are used to represent real-world and virtual terrain in a specific, easily converted format. Most heightfields can be represented as simple image data in grayscale, with black being minimum height and white being maximum height..

  • NE corner lat long: This sets the latitude and longitude of the northeast corner of the heightfieldA heightmap or heightfield is an array of height values, usually in a grid which describe the height at specific points in a defined area. Heightfields are used to represent real-world and virtual terrain in a specific, easily converted format. Most heightfields can be represented as simple image data in grayscale, with black being minimum height and white being maximum height..

  • SE corner lat long: This sets the latitude and longitude of the southeast corner of the heightfieldA heightmap or heightfield is an array of height values, usually in a grid which describe the height at specific points in a defined area. Heightfields are used to represent real-world and virtual terrain in a specific, easily converted format. Most heightfields can be represented as simple image data in grayscale, with black being minimum height and white being maximum height..

  • SW corner lat long: This sets the latitude and longitude of the southwest corner of the heightfieldA heightmap or heightfield is an array of height values, usually in a grid which describe the height at specific points in a defined area. Heightfields are used to represent real-world and virtual terrain in a specific, easily converted format. Most heightfields can be represented as simple image data in grayscale, with black being minimum height and white being maximum height..


Statistics

  • XY Size (metres): This param displays the size of the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. in metres, as loaded from the file. If the size can't be derived from the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. data directly it will be calculated based on georeferencing information. This parameterA parameter is an individual setting in a node parameter view which controls some aspect of the node. is read only, however you can select and copy values from it.
  • XY Size (points): This the number of points in each direction of the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars.. This parameterA parameter is an individual setting in a node parameter view which controls some aspect of the node. is read only, however you can select and copy values from it.

  • Height Range: This field displays height information about the heightfieldA heightmap or heightfield is an array of height values, usually in a grid which describe the height at specific points in a defined area. Heightfields are used to represent real-world and virtual terrain in a specific, easily converted format. Most heightfields can be represented as simple image data in grayscale, with black being minimum height and white being maximum height.. It shows the minimum height, maximum height and the height range. The height range is the minimum height subtracted from the maximum height.

  • DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars. information field: This text field displays the following information about the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars.:

    • Raster band units: This is the units used (metres, feet etc.) for the dimensions of the first raster band in the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars..
    • NODATA value: This shows the value which is used for NODATA values in the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars..

    • Coordinate system: This shows the coordinate system which is being used to georeference the DEMDEM stands for Digital Elevation Model (or Map). A DEM is similar to a heightfield. DEMs are normally generated from real world measurements of a planet's surface, for example Earth or Mars.. The coordinate system is displayed using the OpenGIS Well Known Text format.

    This parameterA parameter is an individual setting in a node parameter view which controls some aspect of the node. is read only, however you can select and copy values from it.
