Distribution Shader v4 - Slope Constraints Tab

Description:
The Slope Constraints tab has settings which let you control where your mask appears according to slope. You can use these settings to make the mask only appear on flatter parts of your scene, steeper parts of the scene or somewhere in between.

There is an example of using a slope constraint on the main page for this node.

You can use the 3D Preview to help you find angles to use for slope constraints. Imagine you have an area of terrain which is gently rising and then turns into a cliff. You want your mask to appear everywhere except on the cliff. You can do that like this:

  1. Navigate in the 3D Preview so you can see the area of interest.
  2. Wait for the 3D Preview to refine to a reasonable detail level. The more it has refined the more accurate the next step will be. If you don't need it to be really accurate just let it go to a reasonable level.
  3. Now context click on the cliff face, near the point where your gently rising terrain turns into the cliff. In the context menu select the Copy Slope Angle item. This will copy the slope angle of the point in the scene where you clicked to the clipboard.
  4. Paste the copied angle into the text field of the Maximum slope angle parameter.
  5. Check the Limit maximum slope checkbox.

This will restrict your mask so it only appears in parts of the scene which are less steep than the cliff.

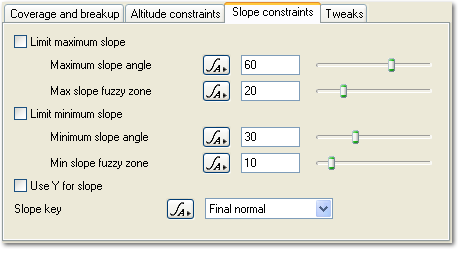

Settings:

  • Limit maximum slope: Check this to turn on the maximum slope constraint. This will stop the mask appearing on areas steeper than the angle specified in the Maximum slope angle parameter.
  • Maximum slope angle: This setting controls the maximum slope the mask will appear at.

  • Max slope fuzzy zone: This controls the width of the fuzzy zone for the maximum slope constraint. The fuzzy zone is an area of the mask that is less steep than the maximum slope where the mask is blended. Fuzzy zones are explained in detail here.

  • Limit minimum slope: Check this to turn on the minimum slope constraint. This will stop the mask appearing on areas with less slope than the angle specified in the Minimum slope angle parameter.

  • Minimum slope angle: This setting controls the minimum slope the mask will appear at. It will not appear on areas flatter than this angle.

  • Min slope fuzzy zone: This controls the width of the fuzzy zone for the minimum slope constraint. The fuzzy zone is an area of the mask that is steeper than the minimum slope where the mask is blended. Fuzzy zones are explained in detail here.

  • Use Y for slope: (TBC) Slope is normally calculated based on the normal specified using the Slope key parameter below. This means that wherever you go on the planet/object slopes will stay the same relative to the surface. If you check this parameter then the Y value from the normal will be used instead which means the angle now becomes relative to the Y axis. As you move further from the planet origin the slope will change. This is most useful for creating global planet-wide effects. For normal situations you can ignore this setting.

  • Slope key: (TBC) This popup list lets you choose different aspects of the scene to take the slope angle from. It has the following options:

    • Final normal: This is the final normal computed after all displacement has happened in the scene.
    • Terrain normal: This is the terrain normal, normally obtained from the last Compute Terrain node.

    • Planet/object normal: This the normal from the planet or object the surface layer is attached to, after displacement has been applied.


Back to: Distribution Shader v4
